Relej preopterećenja RE317D-310 004647425

Specifikacije

Šifra proizvoda:
004647425
Opis:
RE317D-310
Ime razreda:
Relej preopterećenja
Funkcija:
Relej preopterećenja
Funkcija pribilia:
Relej preopterećenja
Opseg podešavanja struje (A):
200A/310A

Dokumenti

Proizvod

Eticode težina
0.9  kg
Carinska tarifa
85364900
logis_net_width
120  mm
logis_net_height
155  mm
logis_net_depth
169  mm

Transportno pakovanje

Količina
1
EAN
7890355110393
Težina
2  kg
Broj paleta
563
Klasifikacija
EC000106
Ime razreda
Thermal overload relay
Adjustable current range
200…310A
Mounting method
Direct attachment/single positioning
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Release class
CLASS 10
ETIM Clasifikacija – Verzija

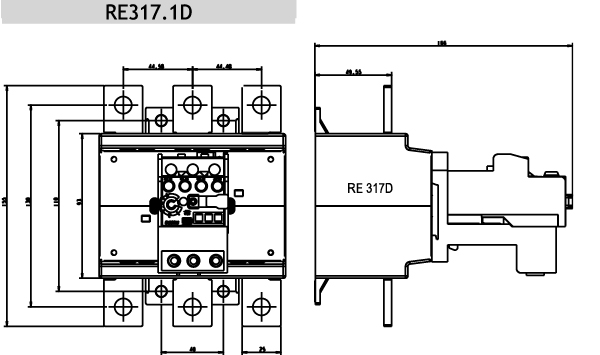

Slike i dijagrami

004647425 Flush mounted enclosure Thermal overload relay, RE317D-310 ETICON Motor contactors Overload relay Overload relay RE317.2D RE317.2D Contactors ETICON Motor contactor CEM, overload relays and acessories Overload relays PREOBR.RELE RE31 Function Overload relay Tripping characteristic Class 10 Mounting type Base plate mounting For use with CEM150(E)...CEM250(E) Number of auxiliary NC contacts 1 Current setting range 200-310A Mounting Direct attachment single positioning Function accessories Overload relay Catalogue Group Accessories CEM CEAM Number of auxiliary NO contacts 1 Thermal overload relay RE317D Overload relay CEM150(E)...CEM250(E)
