001696000
BBS-60/1
- Funkcija:
- 1-pole busbar support for busbars 5-10mm and 20mm or 30mm width
001696001
BBS-60/3
- Funkcija:
- 3-pole busbar support for busbars 5-10mm and 20mm or 30mm width
001696002
BBS-60/4
- Funkcija:
- 4-pole busbar support for busbars 5-10mm and 20mm or 30mm width
001696003
BBS-60/3-A25
- Funkcija:
- 3-pole busbar support for busbars 5-10mm and 20mm or 30mm width
001696004
BBS-60/3-A16
- Funkcija:
- 3-pole busbar support for busbars 5-10mm and 20mm or 30mm width
001696005
H5-BBS
- Funkcija:
- Insertion for busbar height compensation, 5mm
001696006
L-BBS-60/3
- Funkcija:
- Lateral cover for busbar holder, 3p
001696007
L-BBS-60/4
- Funkcija:
- Lateral cover for busbar holder, 4p
001696008
S-BBS-60/3
- Funkcija:
- Side cover for busbar holder (BBS-60/3-A), 3p
001696009
BBC-60/3
- Funkcija:
- Busbar cover (3-pole), covering range 27-50mm/piece
001696010
BBC-60/4
- Funkcija:
- Busbar cover (4-pole), covering range 27-50mm/piece
001696011
BBC-1/20
- Funkcija:
- Busbar cover (1-pole) for single busbar 5-10mm thick and 20mm wide, length 1m
001696012
BBC-1/30
- Funkcija:
- Busbar cover (1-pole) for single busbar 5-10mm thick and 20mm wide, length 1m
001696013
CM-60/250/3
- Funkcija:
- Connecting module 250A, 3-pole, terminal 1,5 - 70mm2 connection
001696014
CM-60/250/4
- Funkcija:
- Connecting module 250A, 4-pole, terminal 1,5 - 70mm2 connection

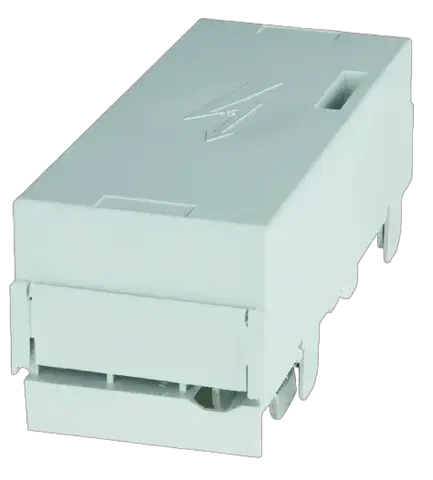

001696015
CM-60/250/3/120-5
- Funkcija:
- Connecting module 250A, 3-pole, terminal 16 - 120mm2 connection using Cu cable or flat Cu busbar 5mm
001696016
CM-60/250/3/120-10
- Funkcija:
- Connecting module 250A, 3-pole, terminal 16 - 120mm2 connection using Cu cable or flat Cu busbar 5mm
001696017
CM-60/630/3
- Funkcija:
- Connecting module 630A, 3-pole, terminal 70 - 300mm2 connection

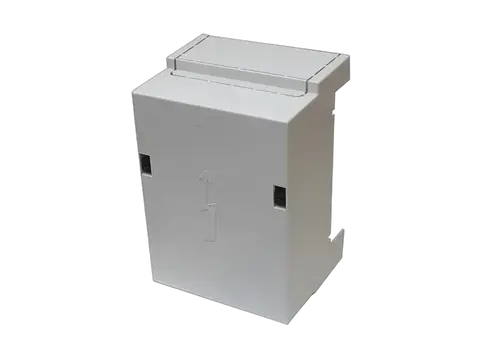

001696018
CM-60/630/F/3
- Funkcija:
- Connecting module 630A, 3-pole, terminal clamping range 11x21mm using flat Cu busbar

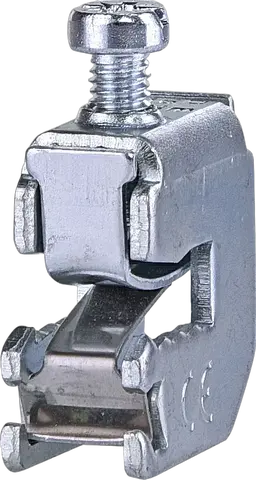

001696019
CT-5/16
- Funkcija:
- Conductor terminal with clamping range 1,5-16mm2 for busbar thickness 5mm
001696020
CT-5/35
- Funkcija:
- Conductor terminal with clamping range 1,5-35mm2 for busbar thickness 5mm

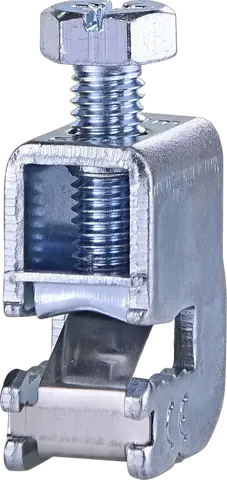

001696021
CT-5/50
- Funkcija:
- Conductor terminal with clamping range 1,5-50mm2 for busbar thickness 5mm
001696022
CT-5/70
- Funkcija:
- Conductor terminal with clamping range 16-70mm2 for busbar thickness 5mm
001696023
CT-5/120
- Funkcija:
- Conductor terminal with clamping range 16-120mm2 for busbar thickness 5mm
001696024
CT-5/185
- Funkcija:
- Conductor terminal with clamping range 16-185mm2 for busbar thickness 5mm
001696025
CT-10/16
- Funkcija:
- Conductor terminal with clamping range 1,5-16mm2 for busbar thickness 5mm
001696026
CT-10/35
- Funkcija:
- Conductor terminal with clamping range 1,5-35mm2 for busbar thickness 5mm
001696027
CT-10/50
- Funkcija:
- Conductor terminal with clamping range 1,5-50mm2 for busbar thickness 5mm
001696028
CT-10/70
- Funkcija:
- Conductor terminal with clamping range 16-70mm2 for busbar thickness 5mm
001696029
CT-10/120
- Funkcija:
- Conductor terminal with clamping range 16-120mm2 for busbar thickness 5mm
001696030
CT-10/185
- Funkcija:
- Conductor terminal with clamping range 16-185mm2 for busbar thickness 5mm
001696031
PT-30/34x10
- Funkcija:
- Plate terminal for busbars up to 30mm width, clamping range 34x34x10mm
001696150
PT-40/34x10
- Funkcija:
- Plate terminal for busbars up to 40mm width, clamping range 34x34x10mm
001696151
PT-50/34x10
- Funkcija:
- Plate terminal for busbars up to 50mm width, clamping range 34x34x10mm
001696032
BBCH-60/144
- Funkcija:
- Universal cover of 3-pole busbars 5-10mm, covering width 144mm (ex. cover for conductor terminals type CT- ...)
001696033
BBCH-60/84
- Funkcija:
- Universal cover of 3-pole busbars 5-10mm, covering width 144mm (ex. cover for conductor terminals type CT- ...)
