Relej preopterećenja RE117.2D-97 004646421

Specifikacije

Šifra proizvoda:
004646421
Opis:
RE117.2D-97
Ime razreda:
Relej preopterećenja
Funkcija:
Relej preopterećenja
Funkcija pribilia:
Relej preopterećenja
Opseg podešavanja struje (A):
75A/97A

Dokumenti

Proizvod

Eticode težina
0.55  kg
Carinska tarifa
85364900
logis_net_width
75  mm
logis_net_height
116  mm
logis_net_depth
105  mm

Transportno pakovanje

Količina
1
EAN
7890355110355
Težina
0.7  kg
Broj paleta
1455
Klasifikacija
EC000106
Ime razreda
Thermal overload relay
Adjustable current range
75…97A
Mounting method
Separate positioning
Type of electrical connection of main circuit
Screw connection
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Release class
CLASS 10
ETIM Clasifikacija – Verzija

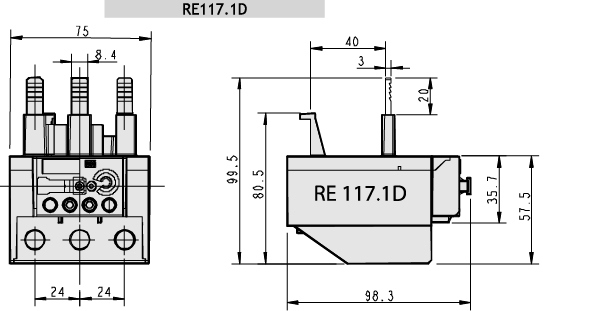

Slike i dijagrami

004646421 Flush mounted enclosure Thermal overload relay, RE117.2D-97 ETICON Motor contactors Overload relay Overload relay RE117.2D RE117.2D Contactors ETICON Motor contactor CEM, overload relays and acessories Overload relays PREOBR.RELE RE11 Function Overload relay Tripping characteristic Class 10 Mounting type Contactor mounting For use with CEM112 (E) Number of auxiliary NC contacts 1 Current setting range 75-97A Mounting Separate positioning Function accessories Overload relay Catalogue Group Accessories CEM CEAM Number of auxiliary NO contacts 1 Thermal overload relay RE117.2D Overload relay CEM112 (E)
