Relej preopterećenja RE67.1D-50 004643416

Specifikacije

Šifra proizvoda:
004643416
Opis:
RE67.1D-50
Ime razreda:
Relej preopterećenja
Funkcija:
Relej preopterećenja
Funkcija pribilia:
Relej preopterećenja
Opseg podešavanja struje (A):
32A/50A

Dokumenti

Proizvod

Eticode težina
0.3  kg
Carinska tarifa
85364900
logis_net_width
50  mm
logis_net_height
77  mm
logis_net_depth
107  mm

Osnovno pakovanje

Količina
1
EAN
7894171705672
Težina
0.309  kg

Transportno pakovanje

Količina
1
EAN
7890355110287
Težina
0.32  kg
Broj paleta
2667
Klasifikacija
EC000106
Ime razreda
Thermal overload relay
Adjustable current range
32…50A
Mounting method
Direct attachment/single positioning
Type of electrical connection of main circuit
Flat plug-in connection
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as normally open contact
1
Release class
CLASS 10
ETIM Clasifikacija – Verzija

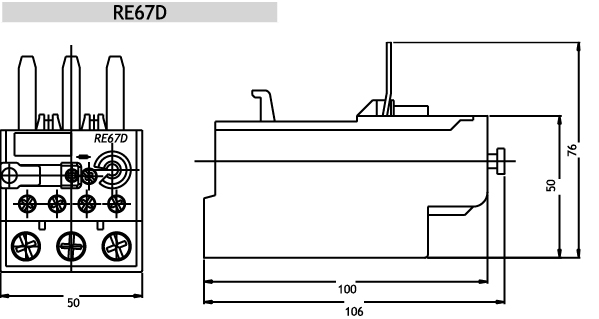

Slike i dijagrami

004643416 Flush mounted enclosure Thermal overload relay, RE67.1D-50 ETICON Motor contactors Overload relay Overload relay RE67.1D RE67.1D Contactors ETICON Motor contactor CEM, overload relays and acessories Overload relays PREOBR.RELE RE67 Function Overload relay Tripping characteristic Class 10 Mounting type Contactor mounting For use with CEM32...CEM40 Number of auxiliary NC contacts 1 Current setting range 32-50A Mounting Direct attachment single positioning Function accessories Overload relay Catalogue Group Accessories CEM CEAM Number of auxiliary NO contacts 1 Thermal overload relay RE67.1D Overload relay CEM32...CEM40
