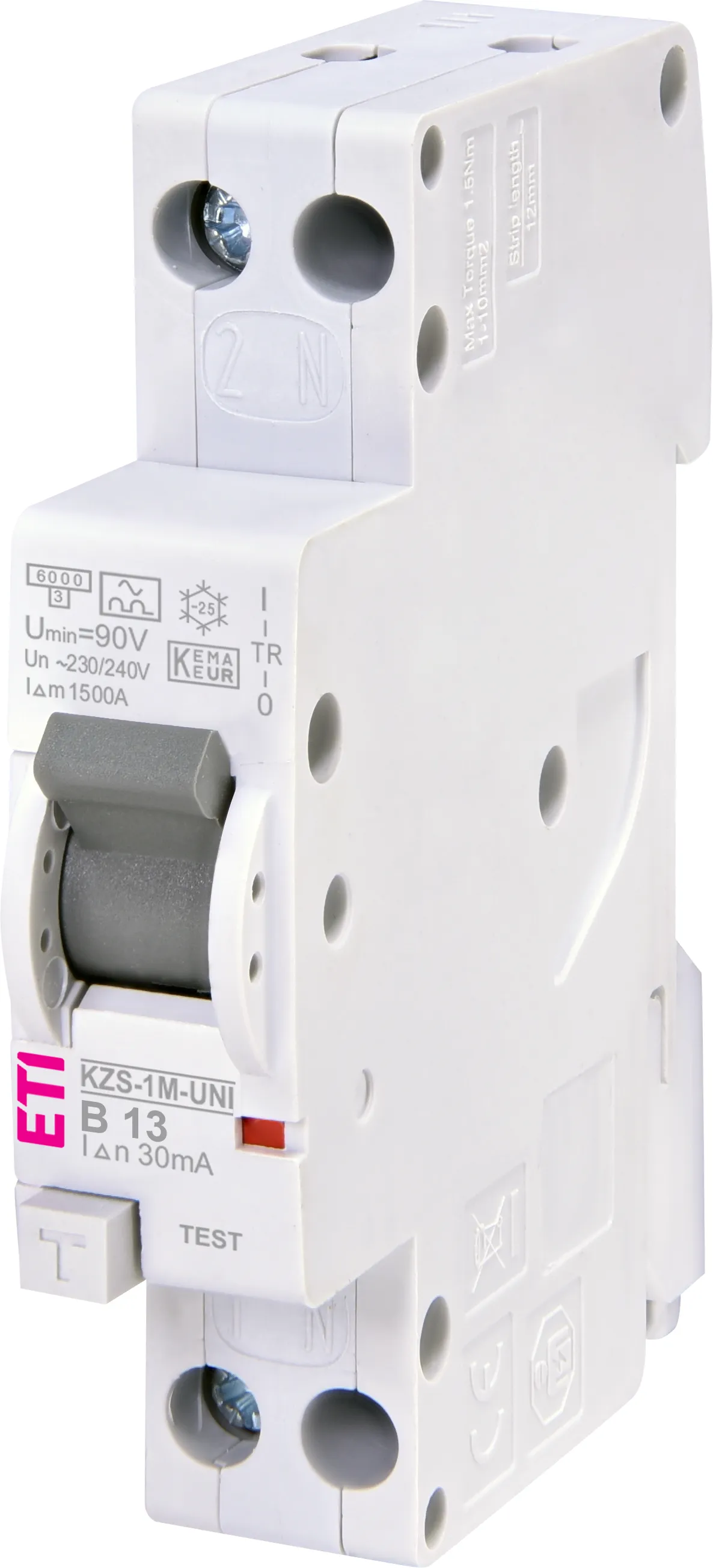

KZS sklopka KZS-1M-UNI 1p+N A B13/0.03 002176023
Specifikacije
- Šifra proizvoda:
- 002176023
- Opis:
- KZS-1M-UNI 1p+N A B13/0.03
- Ime razreda:
- KZS sklopka
- Nazivna diferencijalna struja:
- 0.03
- Tip struje:
- A
- Nazivna struja:
- 13
- Karakteristika okidanja:
- B
- Tip:
- A
- Broj polova:
- 1+N
- Nazivna prekidna moć:
- 6
- Nazivni napon:
- 240
- Nazivna frekvencija (Hz):
- 50/60
- nazivni poprečni presek:
- 1...10
- Standardi:
- EN/IEC 61009-1
Dokumenti
Logistički podaci
Proizvod
- Carinska tarifa
- 85362010
- logis_net_width
- 18 mm
- logis_net_height
- 88 mm
- logis_net_depth
- 74 mm
Osnovno pakovanje
- Količina
- 1
- EAN
- 3838400098368
- Težina
- 0.125 kg
Transportno pakovanje
- Količina
- 72
- EAN
- 3838400098382
- Težina
- 9.7 kg
- Broj paleta
- 3744
COM_ETISTORE_ITEM_TITLE_LOGISTIC_DATA_SECTION4
- qty
- 12 pcs
- Težina
- 1.56 kg
- volume
- 2.04 dm3
ETIM Clasifikacija
- Klasifikacija
- EC000905
- Ime razreda
- Earth leakage circuit breaker
- Number of poles (total)
- 2
- Number of protected poles
- 1
- Rated voltage
- 240EU570079
- Rated insulation voltage Ui
- 250EU570079
- Rated impulse withstand voltage Uimp
- 4EU570193
- Rated current
- 13EU570459
- Rated fault current
- 0,03EU570459
- Leakage current type
- EV000896
- Current limiting class
- 3
- Rated short-circuit breaking capacity according to EN 61009
- 6EU570170
- Rated short-circuit breaking capacity according to IEC 60947-2
- 6EU570170
- Rated short-circuit breaking capacity Icn according to EN 61009-1
- 6EU570170
- Disconnection characteristic
- EV003978
- Voltage type
- EV000460
- Frequency
- EV008015
- Release characteristic
- EV000074
- Concurrently switching neutral conductor
- Da
- With interlocking device
- Ne
- Over voltage category
- 3
- Pollution degree
- 2
- Ambient temperature during operating
- -35…40EU570073
- Width in number of modular spacings
- 1
- Built-in depth
- 70EU570448
- Anti-nuisance tripping version
- Ne
- Degree of protection (IP)
- EV006405
- Connectable conductor cross section solid-core
- 1…10EU570126
- Connectable conductor cross section multi-wired
- 1…10EU570126
